HOT Plate Leveler, HOT Plate Leveling/Straightening Machine, Flatten/Straighten Machine

Types Of HOT Leveling Machine For Sale

HOT Levelling Machine - 翻译中... 

Key Specifications of the HOT Leveling Machine - 翻译中...

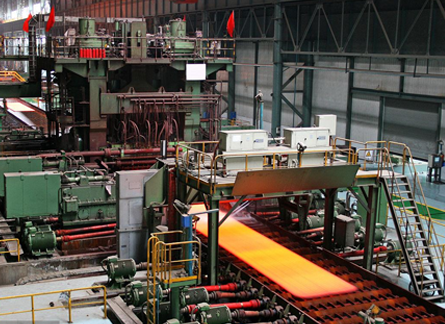

1、Hot Straightener (or Hot Leveler): Flattens steel plates right after they've been hot-rolled. This removes internal stress and makes them straighter.

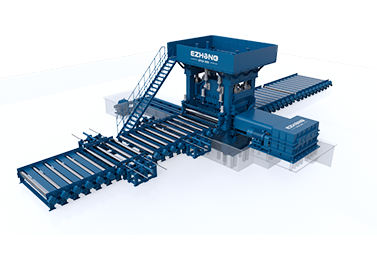

2、Main Parts of a Hot Straightener:

--It typically includes:

-The main straightening machine body (the core unit that flattens the plate)

-The main drive system (powers the rollers)

-Roller changing equipment (lets workers swap out the rollers)

-The electrical controls (manages the drive system and operation)

-Hydraulic and lube systems (provide power and lubrication for moving parts)

The Hot Straightener Main Body:

This is the core structure of the machine and includes:

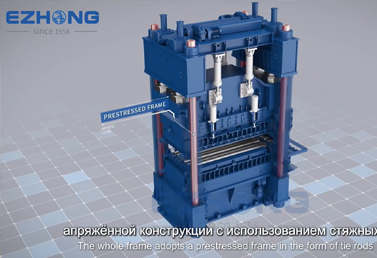

-The main frame assembly (the strong skeleton supporting everything)

-The pressing mechanism (applies the force to straighten the plates)

-The movable beam assembly (allows adjustment of the rollers)

-The working roller assemblies (the main rollers that contact and straighten the hot plate)

-The backup roller assemblies (support rollers behind the working rollers)

-Entry and exit guide tables (guide the plate smoothly into and out of the rollers)

-Roll shaft supports / housings (hold the roller shafts in place)

-Machine piping and utilities (tubes/cables for hydraulics, lubrication, cooling, etc.)

EZHONG specializes in the production of heavy plate levelers, composite plate levelers, high-strength engineering machinery levelers, high-strength steel sheet levelers and other equipment. It has reached the international advanced level in the research and production of roller plate levelers. The jaw-weight roller plate leveler has absorbed advanced foreign technology, especially the German leveler technology, and developed a series of new products with independent intellectual property rights. For decades, it has solved various industry problems in the process of metal sheets conforming to the process. The plate leveler has high leveling accuracy, high efficiency, high degree of automation, and low energy consumption and has been unanimously praised by our customers. The largest leveling machine in China is the EZW43T-120×3000mm (400Mpa) roll plate leveling machine currently produced by EZHONG.

EZHONG HOT Plate Leveler Advantage - 翻译中...



Advance CNC control system, we have software copyrights on this system. The system automatically calculate pressing amount according to the thickness.



Sectional housing. The plate leveler adopt Germany SMS company technology. It can save energy. Because the plate leveler adopts grouping driving patents and self-aligning bearings, so the main motor has small power.



Adopt driving patent. The plate leveler devides the working rollers into two groups. Each group pf working rollers are driven by one motor and a reducer so that it has high efficiency.



The whole structure of the metal fabrication equipment is sectional modularity. Some quick-wear parts such as bearings, seal-ring, back up roll, working roller, etc are conveniently to replace.
